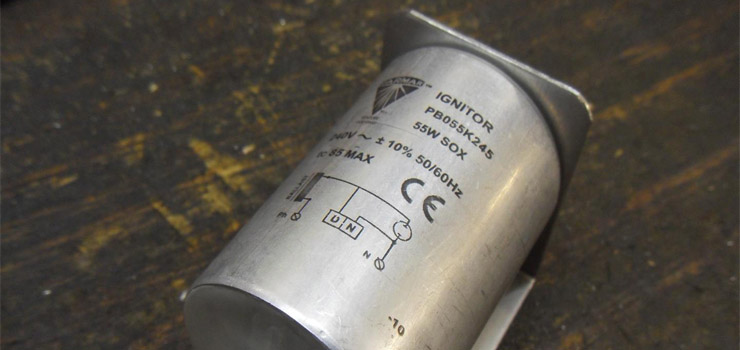

Ignitor
Specifications & Features
- Compact Design
- Zero Watts Loss
- No Internal Temperature Rise
- Digital Intelligence
- Wide Operating Range
Part No |
Type |
Wattage |
Voltage |
Termination |
Dimension |
Pulse magnitude |
Max Lead Capacitance (pf) |
Max case Temp (*C) |
PXA100255 |
Super Imposed |
35 - 150W |
240V |
Terminal Block |
78 x 39 x 36 |
3.5 - 4 KV |
100 |
105 |
Mci6 |
Semi Parallel |
35 - 400W |
240V |
Terminal Block |
50 x 25 x 17 |
3 - 4.5 KV |
1000 |
105 |
PXE100225 |
Super Imposed |
35 - 450W |
240V |
Terminal Block |
71 x 33 x 31 |
3 - 4.5 KV |
100 |
105 |
BS740G |
Impulser |
70 - 400W |
240V |
Terminal Block |
52 x 18 x 25 |
3 - 4.5 KV |
200 |
85 |
BCLC47 |
Impulser |
70 - 400W |
240V |
Wire |
Dia 30 mm |
3.8 - 4.5 KV |
3000 |
85 |
BC 7040 |
Super Imposed |
70 - 400W |
240V |
Terminal Block |
Dia 39 mm |
3.5 - 4.5 KV |
100 |
90 |
PB404K225 |
Impulser |
250 - 400W |
240V |
Terminal Block |
Dia 39 mm |
3 - 4.5 KV |
3000 |
85 |
PXE000255 |
Super Imposed |
600 - 1000W |
240V |
Terminal Block |
90 x 49 x 50 |
3 - 5 KV |
100 |
105 |
PT150K445 |
Super Imposed |
1000 - 2000W |
440V |
Terminal Block |
Dia 51 mm |
5 - 6 KV |
200 |
60 |
PBA200485 |
Two Wire |
1000 - 2000W |
440V |
Terminal Block |
Dia 51 mm |
1 - 1.5 KV |
10000 |
85 |
