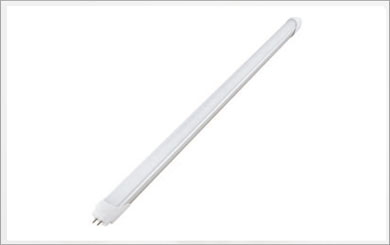

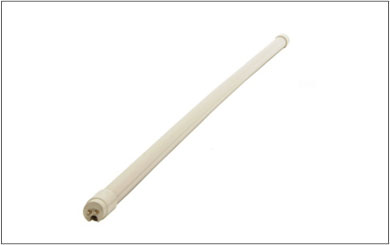

Led Retrofit T5 Tube T Line

Led Retrofit T5 Tube T Line

led flood light suppliers in chennai, tamil nadu, india

Specifications & Features

  • Extruded Aluminum housing with highly efficient PC Opal Diffuser
  • High energy saving Vis a Vis Traditional fluorescent Tube-45% compared to standard 2ft & 4ft T8 or,T5 FTL
  • Over load, over voltage, short circuit protection
  • External constant current driver with PF > 95%
  • More than 85% driver efficiency with THDi < 20%
  • Equipped with 2.5KV Surge Protection
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20ºC to +45ºC
  • Rated Light Source Life 35,000 Hrs (Ta = 35°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference free
  • Without mercury,UV & IR radiation
  • IP 20 Ingress Protection

  • Offices
  • Factories

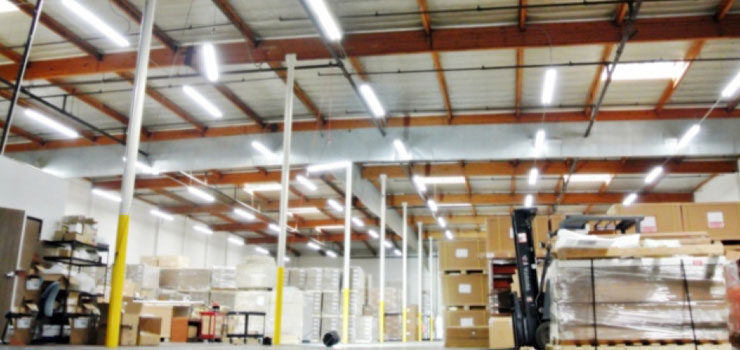

  • Warehouse
  • Backlight
  • Restrurant
  • Residential Lighting
  • Hospitals

  • Retrofit solution to standard G5 medium bi-pin base 2ft & 4ft T5 Tube Light Fixture
  • Power Supply should be disconnected before service

Technical & Ordering Information Download Datasheet

Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm)
VL/LTL-T5-LED01065 T-Line Retro T5 LED Tube 10/CW L600 10 230 0.036 6500 1000
VL/LTL-T5-LED01665 T-Line Retro T5 LED Tube 16/CW L1200 16 230 0.073 6500 1600
VL/LTL-T5-LED01865 T-Line Retro T5 LED Tube 18/CW L1200 18 230 0.082 6500 1800
VL/LTL-T5-LED02065 T-Line Retro T5 LED Tube 20/CW L1200 20 230 0.090 6500 2000
