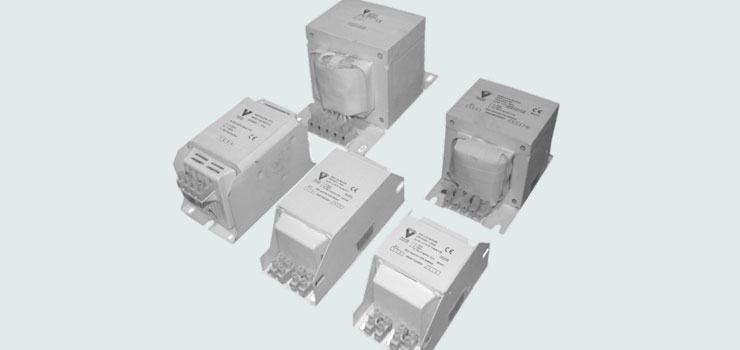

Aluminum Ballast Accessories
Aluminum Ballast Accessories
Specifications & Features
- Cost Effective
- Low Watt Loss
- Matching existing copper ballast foot prints
- Reduced Product Weight
- Longer life (Comparable to Copper Ballast)
- Optimized lamp performance
| Wattage |
Part Code |
Lamp Type |
Input Volts |
Lamp Current (A) |
Dimension (LxWxH) |
| 70 |
DHSA07-V |
MH / SV |
220/240 |
1.00 |
120 x 69 x 56 |
| 150 |
DHSA15-V |
MH / SV |
220/240 |
1.80 |
150 x 69 x 56 |
| 250 |
DHSA25-V |
MH / SV |
220/240 |
3.00 |
120 x 96 x 82 |
| 400 |
DHAA40-V |
MH / SV |
220/240 |
4.45 |
150 x 99 x 81 |
| 1000 |
DHDA1K-V |
MH / MV |
230/240 |
10.3 |
177 x 150 x 126 |
Ultra Efficient Ballast
| Wattage |
Part Code |
Lamp Type |
Input Volts |
Lamp Current (A) |
Dimension (LxWxH) |
| 200 |
HSD202224-HE |
MH |
220/240 |
1.60 |
140 x 77 x 57 |
| 250 |
HSD252224-HE |
MH / SV |
220/240 |
3.00 |
150 x 99 x 76 |
| 400 |
HSD402224-HE |
MH / SV |
220/240 |
4.20 |
160 x 102 x 80 |
