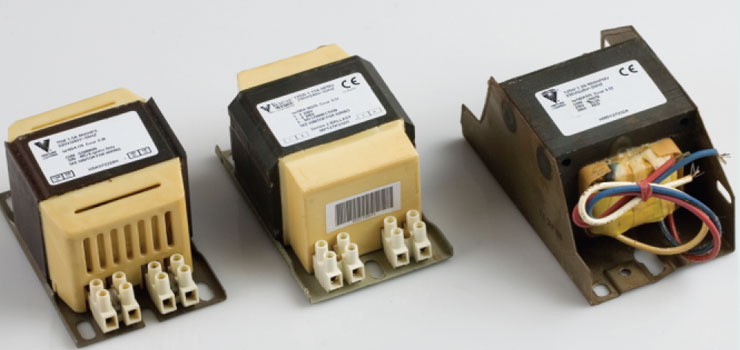

Copper Ballast Accessories

Copper Ballast Accessories

leading metal halide lamps exporter Chennai

Specifications & Features

  • Vacuum Pressure Impregnated
  • Precision Wound Coils
  • Higher efficiency
  • Reduced current crest factor
  • Longer life
  • Optimized lamp performance
  • Optional Thermal cut-out
  • Available in all HID ranges

Technical & Ordering Information Download Datasheet

Class 'B’ Ballast

Wattage Part No Lamp Type Nominal Rated Voltage Lamp Current (A) Dimension (LxWxH)
50 DHSK05-V MH 220/240 0.76 104 x 69 x 56
70 DHSK07-V MH / SV 220/240 1.00 104 x 69 x 56
80 DMP08-V MH / MV 220/240 0.80 105 x 69 x 56
100 DHSK10-V MH 220/240 1.10 106 x 69 x 56
125 DMP12-V MH / MV 220/240 1.15 106 x 69 x 56
150 DHSK15-V MH / SV 220/240 1.80 140 x 69 x 56
200 DHMK20-V MH 220/240 1.63 135 x 68 x 56
250 DHSD25-V MH / SV 220/240 3.00 140 x 77 x 57
250 DHMD25-V MH / MV 220/240 2.15 123 x 77 x 64
320 DHMA32B-V MH 230/240 2.63 167 x 85 x 72
350 DHMK35-V MH 220/240 2.80 137 x 84 x 64
400 DHSD40-V MH / SV 220/240 4.20 140 x 86 x 72
400 DHMD40-V MH / MV 220/240 3.25 140 x 77 x 57
600 DHSD60-V MH / SV 220/240 6.20 150 x 99 x 81
1000 DHDP1K-V MH / SV 210/220/230/240 9.5/10.3 190 x 120 x 105
1500 DHMV02-V MH 380/400/415 6.70 215 x 150 x 126
2000 DHZV943-V MH 380/400/415 10.3 215 x 150 x 126
2060 DHZV944DY-V MH 380/400/415 12.2 230 x 150 x 126

Class 'H' Ballast

Wattage Part Code Description Input Volts Lamp Current (A) Dimension (LxWxH)
70 DHSK07H-V MH / SV 220/240 1.00 104 x 69 x 56
80 DMP08H-V MH / MV 220/240 0.80 105 x 69 x 56
125 DMP12H-V MH / MV 220/240 1.15 106 x 69 x 56
150 DHSK15H-V MH / SV 220/240 1.80 140 x 69 x 56
250 DHSD25H-V MH / SV 220/240 3.00 140 x 77 x 65
250 DHMD25H-V MH / MV 220/240 2.15 123 x 77 x 65
400 DHSD40H-V MH / SV 220/240 4.20 140 x 86 x 72
400 DHMD40H-V MH / MV 220/240 3.25 140 x 77 x 57
