Canopy
Specifications & Features
- Die cast aluminium corrosion resistant housing, silicon rubber gasket, heat resistant toughened glass cover fitted with copper wound ballast, PF correction capacitor and electronic ignitor are prewired upto terminal block.
- Epoxy powder coated painting
- Lamp holder base Rx7s with silver contacts for DE lamp, E-40 skirted porcelain for tubular lamp
- Earthing terminal

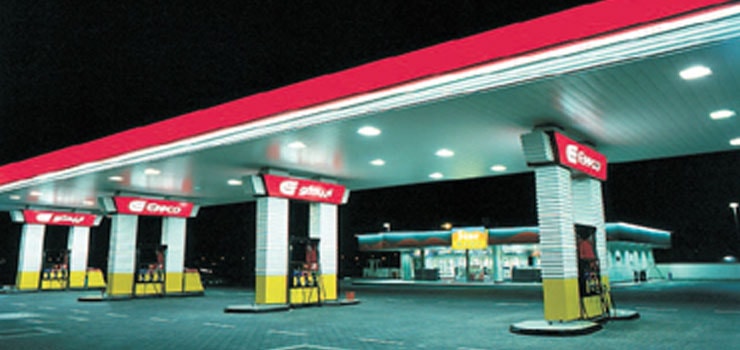

- Petrol pumps
- Industrial Bays
- Electrochemically brightened and high purity anodized aluminium hammered finish reflector provides excellent light distribution.
| Part No |
Lamp Type |
Lamp Qty |
Wattage |
Nominal Rated Voltage |
A |
B |
C |
| VL/CL-70W |
MH |
1 |
70 |
220 / 240 |
410 |
120 |
245 |
| VL/CL-150W |
MH / SV |
1 |
150 |
220 / 240 |
410 |
120 |
245 |
| VL/CL-200W |
MH |
1 |
200 |
220 / 240 |
560 |
160 |
265 |
| VL/CL-250W |
MH / SV |
1 |
250 |
220 / 240 |
560 |
160 |
265 |
| VL/CL-320W |
MH |
1 |
320 |
220 / 240 |
560 |
160 |
265 |
| VL/CL-400W |
MH / SV |
1 |
400 |
220 / 240 |
560 |
160 |
265 |
Luminaires
