Tassel

Tassel

led light dealers in chennai

Specifications & Features

  • Die cast Aluminum (ADC12) housing with special surface treatment
  • Highly efficient optical grade Polymer acrylic lenses
  • 60% energy saving Vis a Vis Conventional HID Bay light
  • Over load, over voltage & short circuit protection
  • Isolated constant current driver with PF > 95%
  • More than 90% driver efficiency with full load THDi < 10%
  • Equipped with 4KV (L-E) Surge immunity
  • Wide operating voltage 100 - 277V
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -20°C to +50°C
  • Rated Light Source Life 50,000 Hrs (Ta= 30°C @ L70)
  • High intensity of illumination
  • Secondary lens provides with 60°view angle
  • Flicker free instant start electronic operation
  • Electric wave & radio interference free
  • Without mercury, UV & IR radiation
  • LED Chip Output 130lm/watt
  • IP 66 Ingress Protection

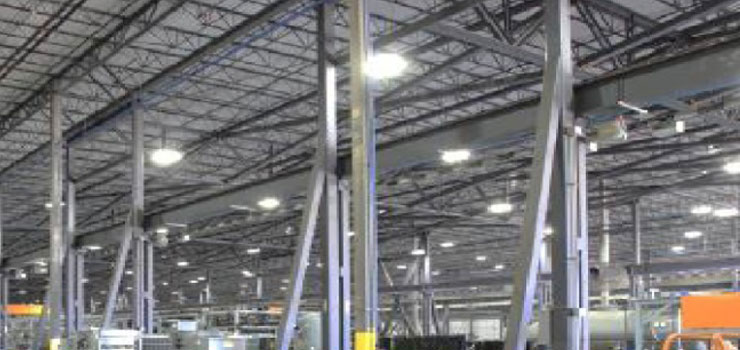

  • Workshops
  • Warehouse
  • Assembly lines
  • Generator rooms, Cold storage
  • Rolling mills
  • High-ceiling space

  • Direct mounting suitable for M8 bolt(2 No) with pitch of 150mm
  • Conduit mounting with suitable pipe 20mm
  • Suspension mounting with pitch of 160mm

Technical & Ordering Information Download Datasheet

Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) Mains Current(A) CCT (K) Lumen (lm) Weight (Kg)
VL/HBL-801-LED06056 Tassel LED High Bay 60/CW IP 66 60 230 0.3 5600 6900 4.8
VL/FDL-801-LED08056 Tassel LED High Bay 80/CW IP 66 80 230 0.4 5600 9200 4.8
VL/FDL-801-LED12056 Tassel LED High Bay 120/CW IP 66 120 230 0.6 5600 13800 8.5
VL/FDL-801-LED16056 Tassel LED High Bay 160/CW IP 66 160 230 0.8 5600 18400 8.5
VL/FDL-801-LED18056 Tassel LED High Bay 180/CW IP 66 180 230 0.9 5600 20700 12.8
VL/FDL-801-LED24056 Tassel LED High Bay 240/CW IP 66 240 230 1.2 5600 27600 12.8
VL/FDL-801-LED32056 Tassel LED High Bay 320/CW IP 66 320 230 1.5 5600 36800 16.5

LED Highbay Light
