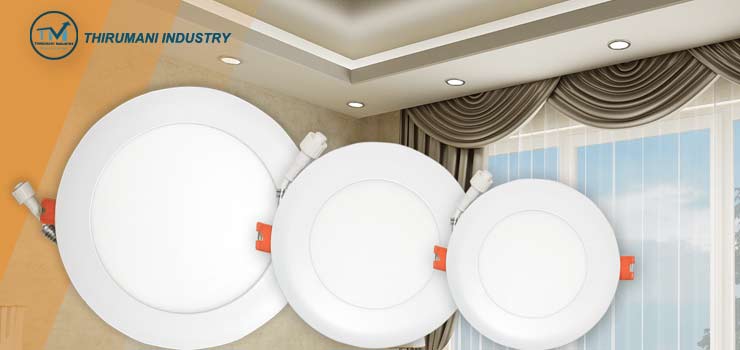

Slim Round

stadium light suppliers in india

Specifications & Features

  • Integrated injection thermo-bio plastic housing frame with highly efficient PP Opal diffuser.
  • High energy saving Vis a Vis conventional fluorescent-50% compared to 2x PLL CFLs.
  • Built-in Constant current driver with > 95% power factor
  • More than 85% driver efficiency with <15% current THD
  • Wide operating voltage 100 - 277Vac
  • Color Rendering Index (CRI) > 80
  • Working ambient temperature -10°C to + 45°C
  • Rated Life 50,000Hrs (Ta= 35°C @ L70)
  • High intensity of illumination with 120°beam angle
  • Uniform diffuse & excellent glare control
  • Instant start without flash & humming
  • Electric wave & radio interference resistant
  • Free of Mercury,UV & IR radiation
  • IP 20 Ingress Protection

  • Hotels
  • Conference / Meeting rooms
  • Offices
  • Commercial Purposes
  • Institutional Buildings
  • Educational Institute
  • Hospitals

  • Feasible for Surface,Recess & Suspension mounting
  • Suitable for Grid ceiling
  • Surface, POP & Gypsum Ceiling mounting using additional mounting clamps
  • Power supply should be disconnected before service

Technical & Ordering Information Download Datasheet

Product ID / Ordering Code Product Description Wattage(W) Nominal Voltage(V) CCT (K) Lumen (lm)
VL/PNL-203-LED04030 Slim Square LED Panel 40/ WW L600 40 230 3000 3500
VL/PNL-203-LED04040 Slim Square LED Panel 40/ NW L600 40 230 4000 3900
VL/PNL-203-LED04060 Slim Square LED Panel 40/ CW L600 40 230 6500 3900
VL/PNL-203-LED06030 Slim Square LED Panel 60/ WW L600 60 230 3000 4800
VL/PNL-203-LED06040 Slim Square LED Panel 60/ NW L600 60 230 4000 5100

Panel Light
